SST SERIES SELECTOR GUIDE
Product Image Product Color Package Max
Drive Current Optical Output Downloads Status
SST-10-UV
365 nm SMT
3.45 mm x 3.45 mm 1.0 A 0.7 W - 0.9 W Datasheet Active 385 nm 0.9 W - 1.2 W 395 nm 0.9 W - 1.2 W 405 nm 0.8 W - 1.0 W
SST-10-B Blue (450 nm) SMT
3.45 mm x 3.45 mm 1.5 A 510 - 670 mW (0.35 A) Datasheet Active
SST-20-B Blue (450 nm) SMT
3.45 mm x 3.45 mm 3.0 A 630 - 830 mW (0.35 A) Datasheet Active
SST-10-SB Sky Blue (470 nm) SMT
3.45 mm x 3.45 mm 1.5 A 470 - 590 mW (0.35 A) Datasheet Active
SST-10-G Green (527 nm) SMT
3.45 mm x 3.45 mm 1.5 A 190 - 350 mW (0.35 A) Datasheet Active
SST-10-R Red (621 nm) SMT
3.45 mm x 3.45 mm 1.5 A 230 - 390 mW (0.35 A) Datasheet Active
SST-10-DR Deep Red (660 nm) SMT
3.45 mm x 3.45 mm 1.5 A 270 - 430 mW (0.35 A) Datasheet Active

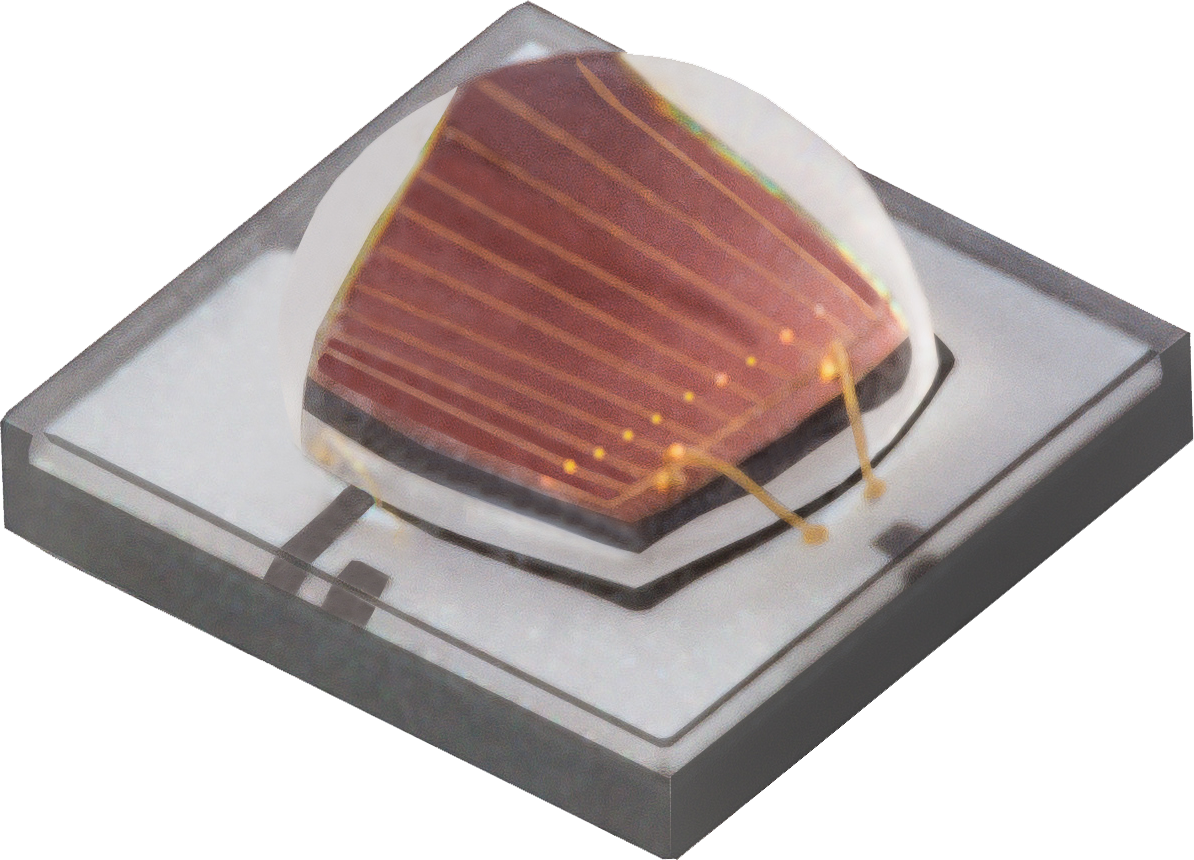

SST-20-DR Deep Red (660 nm) SMT
3.45 mm x 3.45 mm 3.0 A 790 - 990 mW (0.70 A) Datasheet Active
SST-10-FR Far Red (730 nm) SMT
3.45 mm x 3.45 mm 1.5 A 270 - 390 mW (0.35 A) Datasheet Active
SST-20-WxS 5000 – 6500 K White,
Standard CRI SMT
3.45 mm x 3.45 mm 3 A 900 - 1100 lm (3 A) Datasheet Active
SST-20-WxH 2700 – 4000 K White,
95 CRI SMT
3.45 mm x 3.45 mm 3 A 155 – 320 lm (700 mA) Datasheet Active
| Product Image | Product | Color | Package | Max Drive Current | Optical Output | Downloads | Status |
|---|---|---|---|---|---|---|---|
 | SST-10-UV | 365 nm | SMT 3.45 mm x 3.45 mm | 1.0 A | 0.7 W - 0.9 W | Datasheet | Active |
| 385 nm | 0.9 W - 1.2 W | ||||||
| 395 nm | 0.9 W - 1.2 W | ||||||
| 405 nm | 0.8 W - 1.0 W | ||||||
 | SST-10-B | Blue (450 nm) | SMT 3.45 mm x 3.45 mm | 1.5 A | 510 - 670 mW (0.35 A) | Datasheet | Active |
 | SST-20-B | Blue (450 nm) | SMT 3.45 mm x 3.45 mm | 3.0 A | 630 - 830 mW (0.35 A) | Datasheet | Active |
 | SST-10-SB | Sky Blue (470 nm) | SMT 3.45 mm x 3.45 mm | 1.5 A | 470 - 590 mW (0.35 A) | Datasheet | Active |
 | SST-10-G | Green (527 nm) | SMT 3.45 mm x 3.45 mm | 1.5 A | 190 - 350 mW (0.35 A) | Datasheet | Active |
 | SST-10-R | Red (621 nm) | SMT 3.45 mm x 3.45 mm | 1.5 A | 230 - 390 mW (0.35 A) | Datasheet | Active |
 | SST-10-DR | Deep Red (660 nm) | SMT 3.45 mm x 3.45 mm | 1.5 A | 270 - 430 mW (0.35 A) | Datasheet | Active |
 | SST-20-DR | Deep Red (660 nm) | SMT 3.45 mm x 3.45 mm | 3.0 A | 790 - 990 mW (0.70 A) | Datasheet | Active |
 | SST-10-FR | Far Red (730 nm) | SMT 3.45 mm x 3.45 mm | 1.5 A | 270 - 390 mW (0.35 A) | Datasheet | Active |
 | SST-20-WxS | 5000 – 6500 K White, Standard CRI | SMT 3.45 mm x 3.45 mm | 3 A | 900 - 1100 lm (3 A) | Datasheet | Active |
 | SST-20-WxH | 2700 – 4000 K White, 95 CRI | SMT 3.45 mm x 3.45 mm | 3 A | 155 – 320 lm (700 mA) | Datasheet | Active |
COB SERIES SELECTOR GUIDE
Product Image Product Color Package Max
Drive Current Optical Output Downloads Status
CXM-14 Purple COB package
19 mm * 19 mm (AC)
14.3 mm LES 1,440 mA 40 ~ 72 (μmol/s) Datasheet Active
CXM-14 Plant White COB package
19 mm * 19 mm (AC)
14.3 mm LES 1,440 mA 40 ~ 72 (μmol/s) Datasheet Active
CLM-22 Purple COB package
28 mm * 28 mm (AC)
22 mm LES 2,200 mA 60 ~ 115 (μmol/s) Datasheet Active
CLM-22 Plant White COB package
28 mm * 28 mm (AC)
22 mm LES 2,200 mA 60 ~ 115 (μmol/s) Datasheet Active
CXM-22 Purple COB package
28 mm * 28 mm (AC)
22 mm LES 2,200 mA 90 ~ 165 (μmol/s) Datasheet Active
CXM-22 Plant White COB package
28 mm * 28 mm (AC)
22 mm LES 2,200 mA 90 ~ 165 (μmol/s) Datasheet Active
CXM-32 Plant White COB package
38 mm * 38 mm (AC)
32 mm LES 4,400 mA 200 ~ 360 (μmol/s) Datasheet Active
| Product Image | Product | Color | Package | Max Drive Current | Optical Output | Downloads | Status |
|---|---|---|---|---|---|---|---|
 | CXM-14 | Purple | COB package 19 mm * 19 mm (AC) 14.3 mm LES | 1,440 mA | 40 ~ 72 (μmol/s) | Datasheet | Active |
 | CXM-14 | Plant White | COB package 19 mm * 19 mm (AC) 14.3 mm LES | 1,440 mA | 40 ~ 72 (μmol/s) | Datasheet | Active |
 | CLM-22 | Purple | COB package 28 mm * 28 mm (AC) 22 mm LES | 2,200 mA | 60 ~ 115 (μmol/s) | Datasheet | Active |
 | CLM-22 | Plant White | COB package 28 mm * 28 mm (AC) 22 mm LES | 2,200 mA | 60 ~ 115 (μmol/s) | Datasheet | Active |
 | CXM-22 | Purple | COB package 28 mm * 28 mm (AC) 22 mm LES | 2,200 mA | 90 ~ 165 (μmol/s) | Datasheet | Active |
 | CXM-22 | Plant White | COB package 28 mm * 28 mm (AC) 22 mm LES | 2,200 mA | 90 ~ 165 (μmol/s) | Datasheet | Active |
 | CXM-32 | Plant White | COB package 38 mm * 38 mm (AC) 32 mm LES | 4,400 mA | 200 ~ 360 (μmol/s) | Datasheet | Active |
MIDPOWER SERIES SELECTOR GUIDE
Product Image Package Platform Voltage (V) Current (mA) Input Power (W) TYP FLUX (lm),
3000k, 80CRI TYP lm/W,
3000k, 80CRI Downloads
NEW
MP-3030-110H2.8 65 0.182 33 181 Datasheet
NEW
MP-3030-12ZH2.67 65 0.173 33.5 193 Datasheet
NEW
MP-3030-210H6.0 150 0.9 140 156 Datasheet
MP-5050-8100 24 200 4.8 630 131 Datasheet
NEW
CUBE-1616-11033.0 150 0.45 62 138 Datasheet NEW
CUBE-1616-21036.0 150 1.0 118 131 Datasheet
| Product Image | Package Platform | Voltage (V) | Current (mA) | Input Power (W) | TYP FLUX (lm), 3000k, 80CRI | TYP lm/W, 3000k, 80CRI | Downloads |
|---|---|---|---|---|---|---|---|
| NEW MP-3030-110H | 2.8 | 65 | 0.182 | 33 | 181 | Datasheet |
| NEW MP-3030-12ZH | 2.67 | 65 | 0.173 | 33.5 | 193 | Datasheet |
| NEW MP-3030-210H | 6.0 | 150 | 0.9 | 140 | 156 | Datasheet |
| MP-5050-8100 | 24 | 200 | 4.8 | 630 | 131 | Datasheet |
| NEW CUBE-1616-1103 | 3.0 | 150 | 0.45 | 62 | 138 | Datasheet |
| NEW CUBE-1616-2103 | 6.0 | 150 | 1.0 | 118 | 131 | Datasheet |
